Phonovibe Octa

Enhanced Data Acquisition

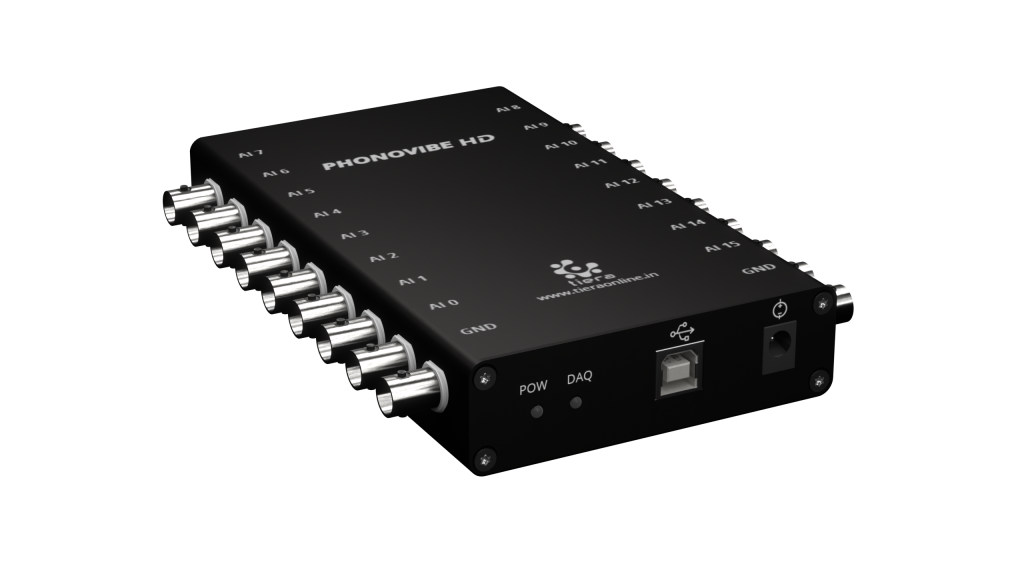

Phonovibe Octa is a cutting-edge eight channel PC based Data Acquisition (DAQ) system, offering real-time data capture with unparalleled accuracy and customization for professionals in Sound and Vibration Analysis.

Data sheet

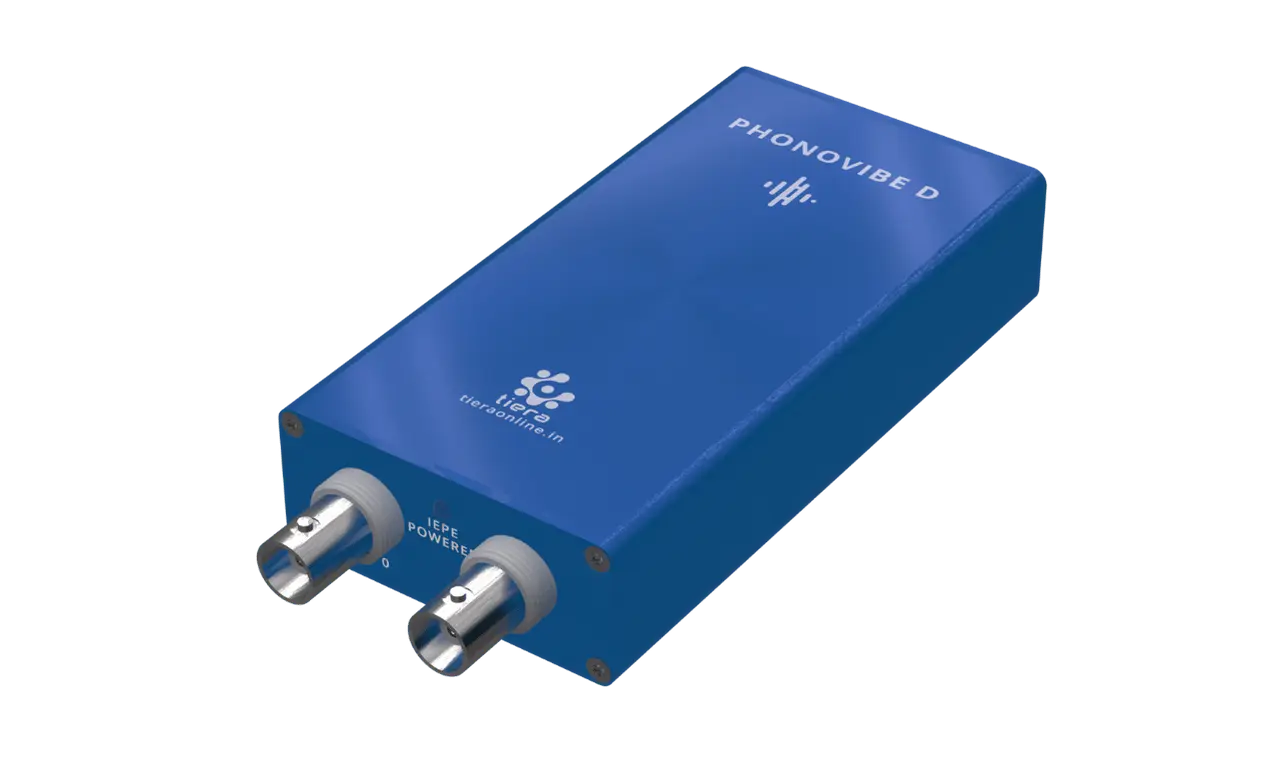

PhonoVibe Duos

Amazing accuracy at an Affordable Price.

PhonoVibe Duos is an affordable & accurate Two channel PC based Data Acquisition (DAQ) system. Launch your multichannel Sound & Vibration Analysis offering real-time data capture with unparalleled intuitivensess and customization.

Data sheet

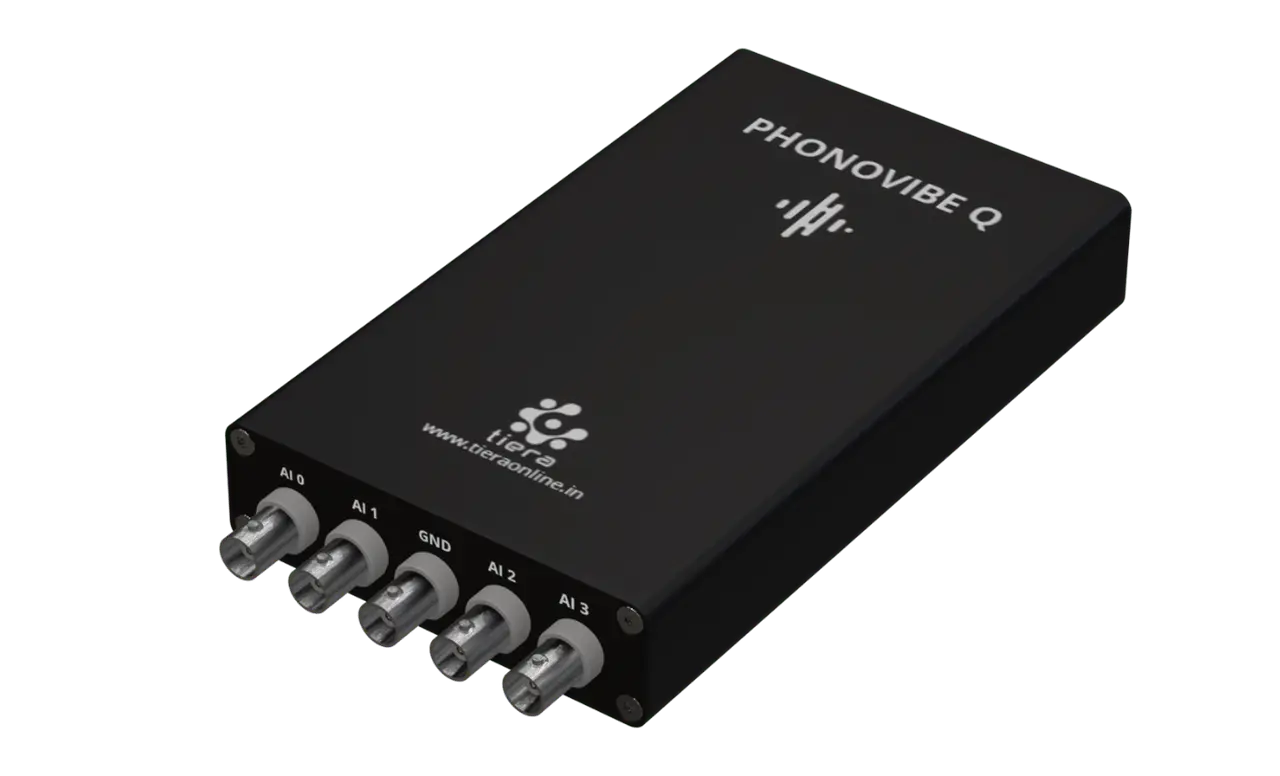

PhonoVibe Quad

Streamline Noise & Vibration Analysis with Ease

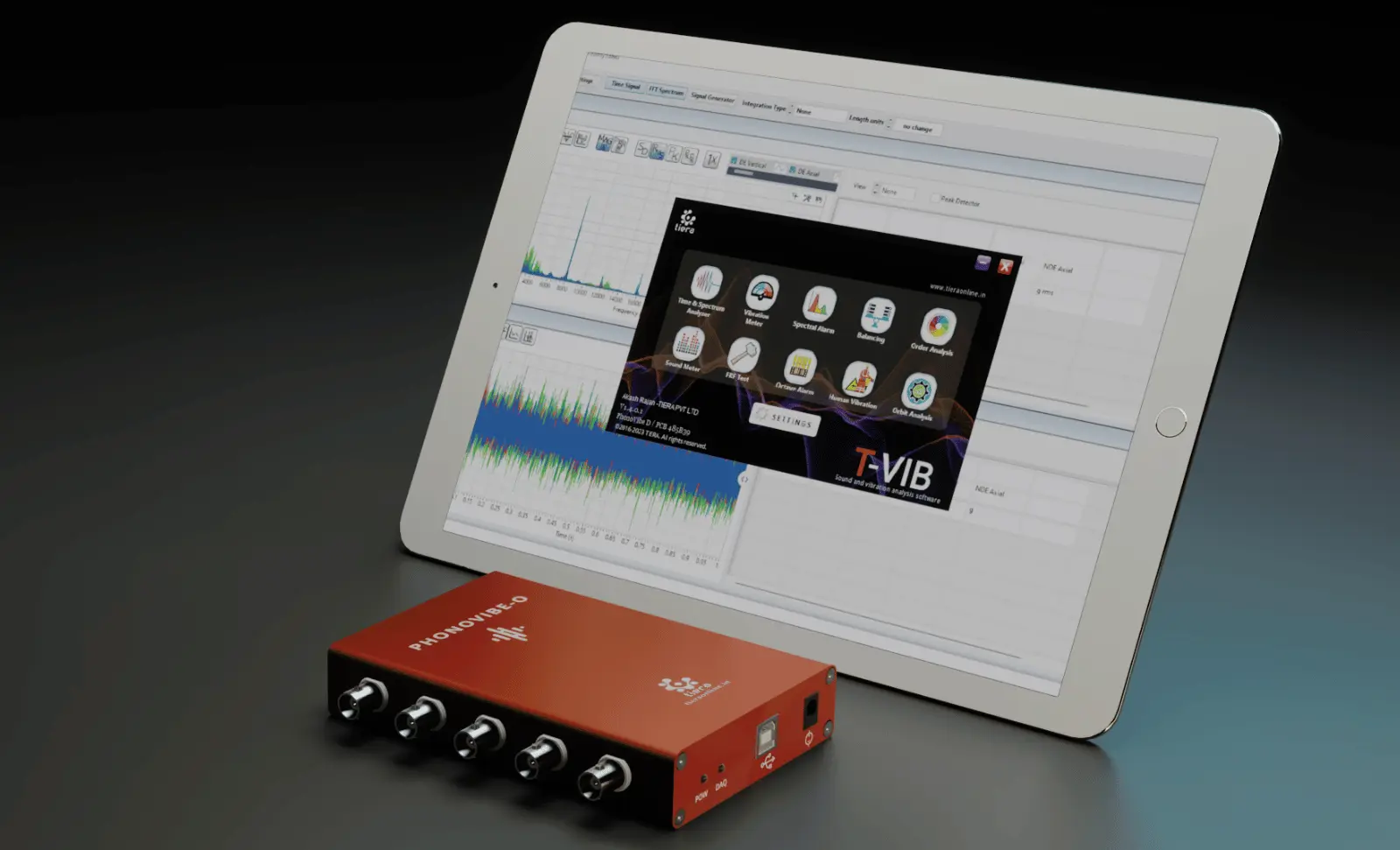

Meet the Phonovibe Q: A compact USB-powered four-channel noise and vibration analyzer that simplifies setup and seamlessly works with different sensors through its user-friendly T-ViB software. Whether you’re an engineer or researcher, Phonovibe Q enhances efficiency, providing dependable results and pro-level performance in a portable design, making complex noise and vibration analysis a breeze.

Data sheet
3cd5966b-ec05-44f6-bc25-f1c5614d65e1
PhonoVibe ECO X

Revolutionize & EconomizeYourModal Analysis

PhonoVibe ECO X—an all-in-one solution that seamlessly integrates a shaker, power amplifier, specialized signal generator, and vibration analyzer into a single portable device. Simplify your testing process and elevate your Modal Test procedures to new levels of precision and reliability. It empowers you to analyze vibrations, conduct modal analysis, perform hammer tests, shaker tests, acoustic tests, and more, all in one convenient package.

Data sheet
Scroll
Experience the

PhonoVibe Promise.

Reduction in operating costs for the whole product team which creates amazing UI/UX.

Plug
& Play
Affordable
Pricing
LabVIEW
API
2 Year
Warranty
IEPE
Powered
Factory
Calibrated
Free TVIB
Software
USB
Powered
Custom
Software
Two year warranty

Economic
pricing.

Offer valid upto December 31, 2023. Contact sales for discounts.

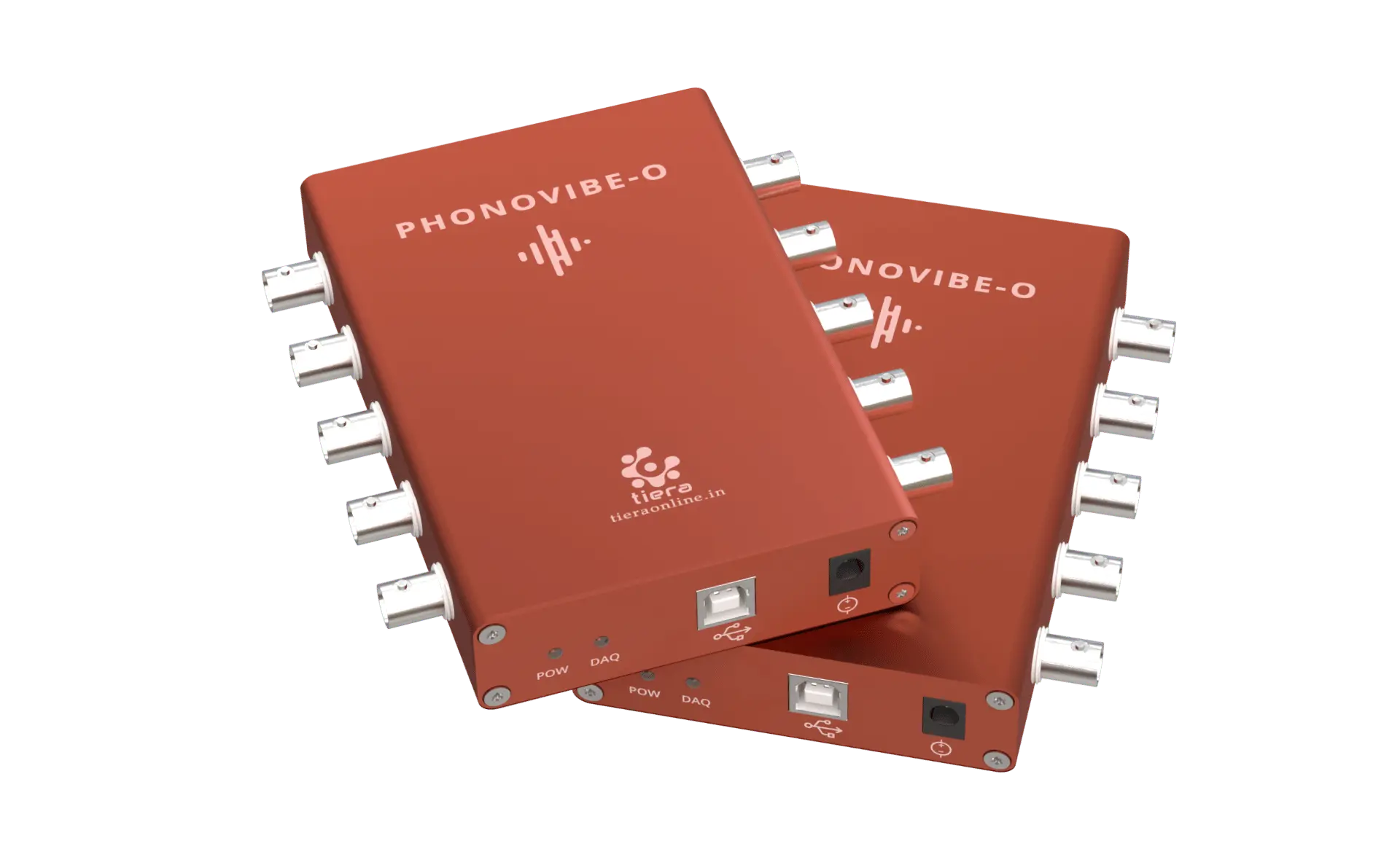

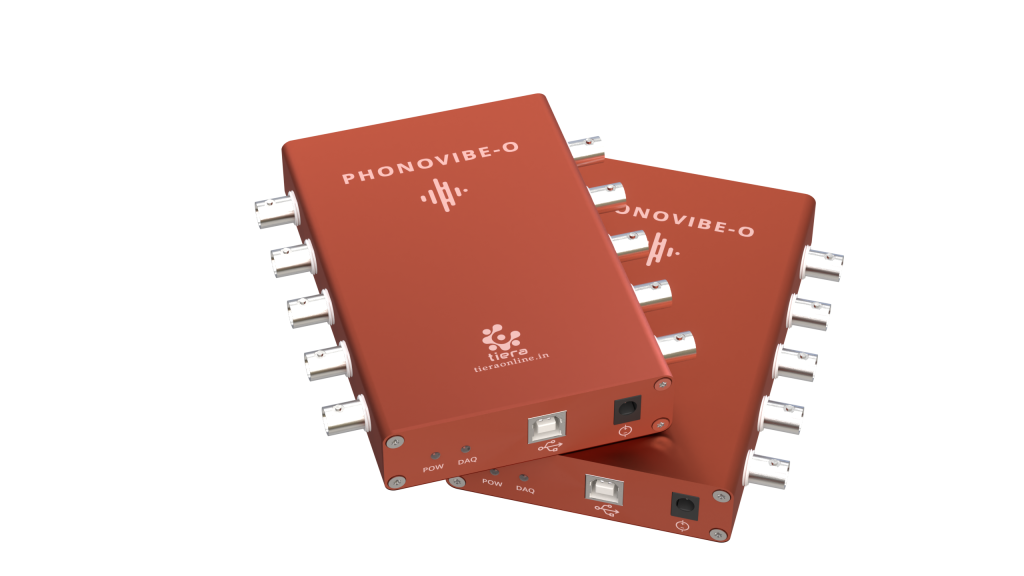

PhonoVIbe O
$4750 Starts @
Powerful 8 channel PhonoVibe Octa IEPE Analyzer.
  • 8 BNC Input Channels
  • Simultaneous sampling ADC
  • 128kHz Sampling frequency
  • 0.5Hz to 60kHz
  • 4mA constant current source
  • IEPE/ICP/CCLD sensors
  • 24V Sensor powering
  • +/-5V Input Voltage
  • 24Bit ADC resolution
  • AC coupled input
  • Free TVIB software TSAP201
  • USB Powered, Plug and Play
  • Two year Warranty
  • Static Measurements (DC)
  • TEDS
Shop

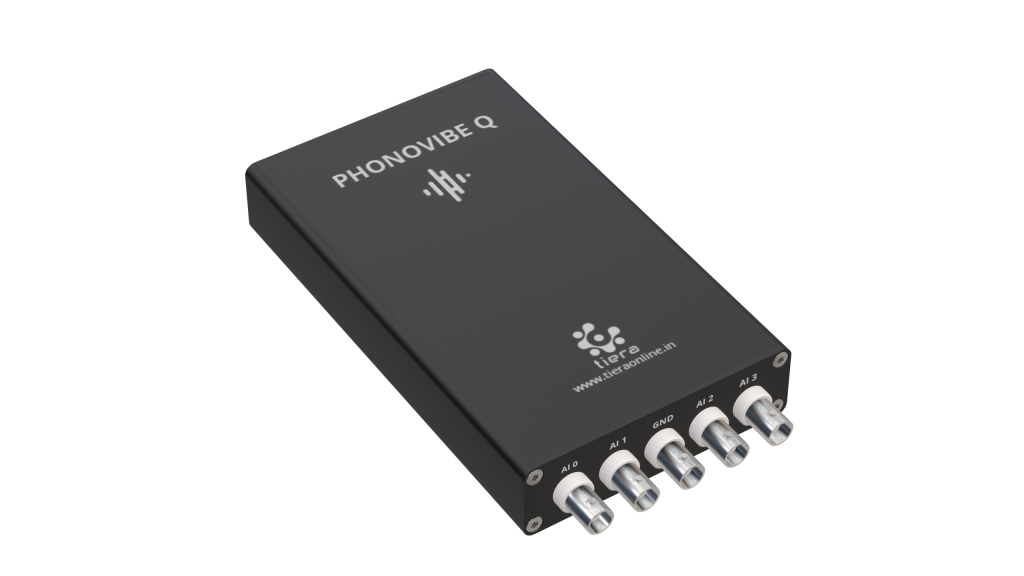

PhonoVIbe Q
$3150 Starts @
The four channel economic Analyzer, PhonoVibe Quad.
  • 4 BNC Input Channels
  • Simultaneous sampling ADC
  • 128kHz Sampling frequency
  • 0.5Hz to 60kHz
  • 4mA constant current source
  • IEPE/ICP/CCLD sensors
  • 24V Sensor powering
  • +/-5V Input Voltage
  • 24Bit ADC resolution
  • AC coupled input
  • Free TVIB software TSAP201
  • USB Powered, Plug and Play
  • Two year Warranty
  • 146 (L) x 96 (W) x 25 mm (H)
  • Static Measurements (DC)
  • TEDS
Shop

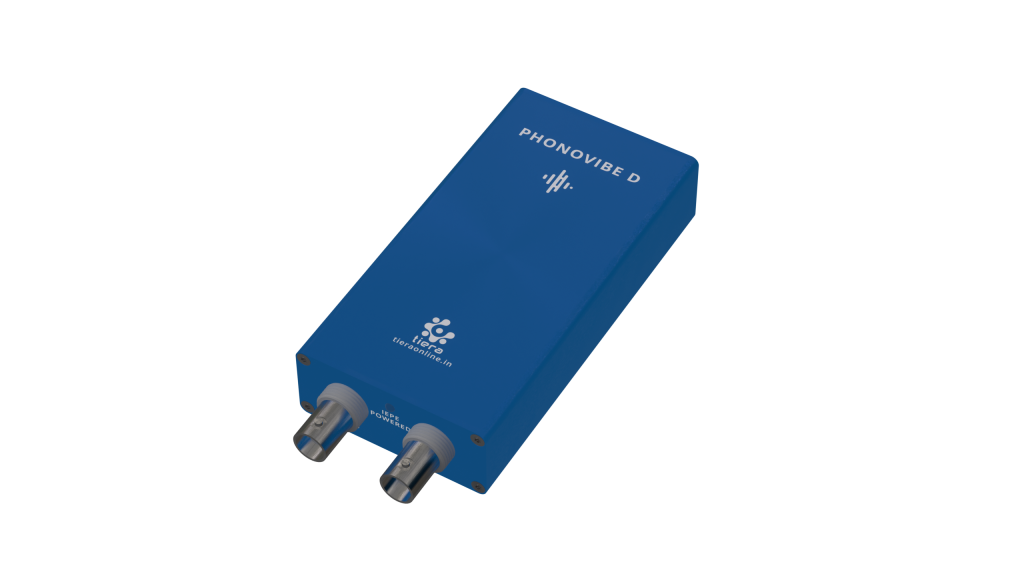

PhonoVIbe D
$1500 Starts @
Affordable two channel S&V analyzer, PhonoVibe Duos
  • 2 BNC Input Channels
  • Simultaneous sampling ADC
  • 48kHz Sampling frequency
  • 2Hz to 20kHz
  • 4mA constant current source
  • IEPE/ICP/CCLD sensors
  • 24V Sensor powering
  • +/-10V Input Voltage
  • 24Bit ADC resolution
  • AC coupled input
  • Free TVIB software TSAP201
  • USB Powered, Plug and Play
  • Two year Warranty
  • Static Measurements (DC)
  • TEDS
Shop

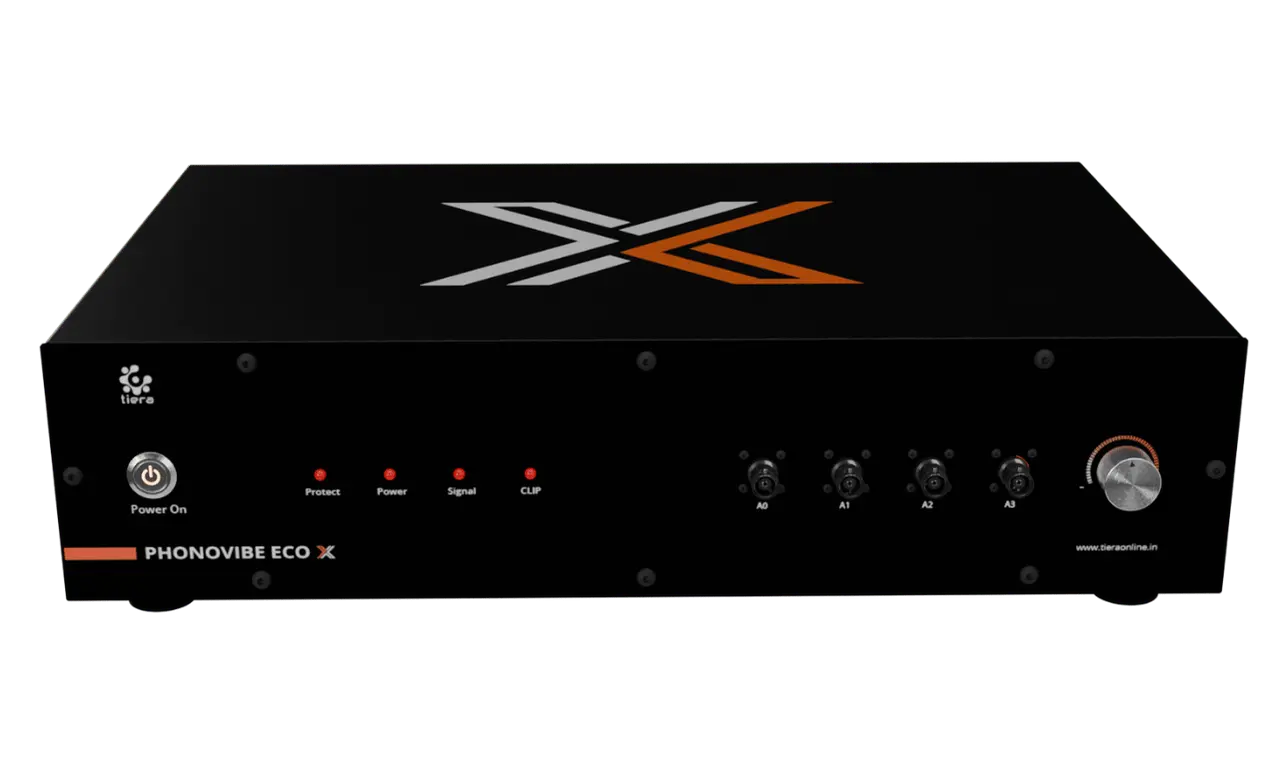

PhonoVibe ECO X

Most Affordable &
Comprehensive
Modal Analysis
Package with
PhonoVibe ECO X

Offer valid upto December 31, 2023. Contact sales for discounts.

All in one Solution
$6750 Starts @
Affordable two channel S&V analyzer, PhonoVibe Eco X
  • 4 BNC Input and 1 BNC Output Channels
  • Simultaneous sampling ADC
  • 48kHz Sampling frequency
  • 2Hz to 20kHz
  • 4mA constant current source
  • IEPE/ICP/CCLD sensors
  • 24V Sensor powering
  • +/-10V Input Voltage
  • 24Bit ADC resolution
  • AC coupled input
  • Free TVIB software TSAP201 & TIST
  • 25mV/N Impact hammer
  • 100mV/g Accelerometer
  • 20N Electrodynamic shaker
  • Inbuilt 150W shaker amplifier
  • PC based signal generator:Sine, Chirp, Burst, Random
  • 230V AC, 50Hz Power, 300Watts max
  • Two year Warranty
  • Static Measurements (DC)
  • TEDS
Clear your queries

Frequently
asked
questions.

Do you offer extended warranty?

Unveil the PhonoVibe Promise through our cutting-edge DAQ systems. Your investment secures a timeless solution, meticulously engineered for flawlessness. Our warranty ensures 2 years of coverage from delivery, a testament to our commitment to quality.

Opt for our standard 2-year warranty or extend it up to 3 years for prolonged protection. Reach out to our dedicated sales team at sales@tieraonline.in for comprehensive details on the extended warranty offering.

Do you offer free software with PhonoVibe?

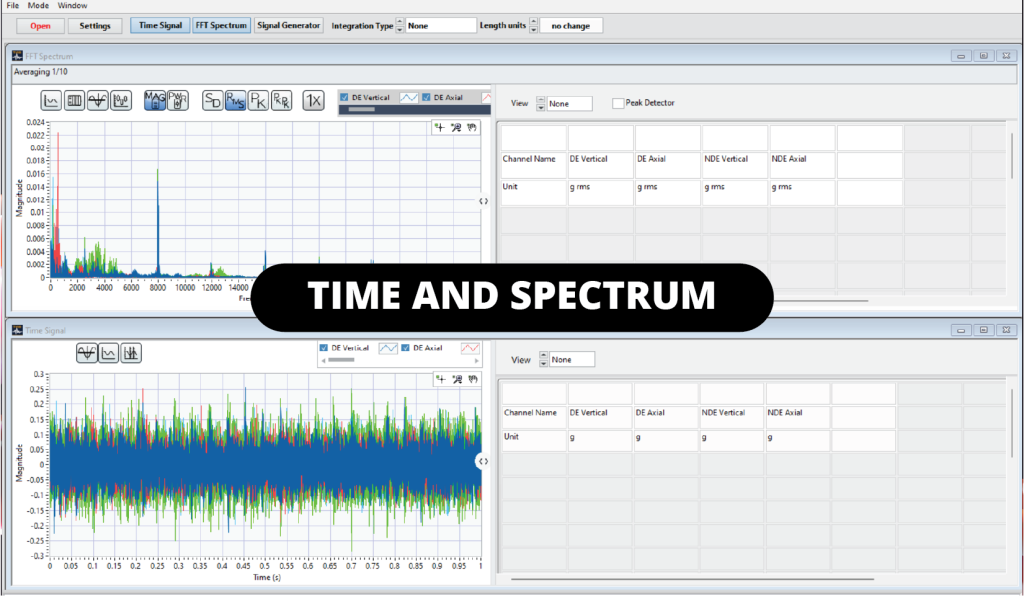

Certainly! Each PhonoVibe data acquisition system comes complete with the TVIB Time and Spectrum Analyzer software, seamlessly integrated without any extra charges. TVIB empowers you with in-depth data analysis functionalities, encompassing time and spectrum analysis, as well as data storage, visualization and exporting capabilities.

Please take note that specific advanced signal processing and software features designed for specialized applications may be available as paid options. For a comprehensive overview of TVIB versions and their features, consult the TVIB Software Matrix.

Do you offer calibration/recalibration of hardware?

Absolutely! Every PhonoVibe data acquisition device is meticulously calibrated at our production facility before being dispatched to our valued customers. Our rigorous calibration process ensures optimal measurement precision and functionality of every signal conditioner, leaving no aspect overlooked. A factory calibration certificate is included, with a validity of 1 year from the date of purchase.

Moreover, we offer the convenience of recalibration services. If you wish to maintain the highest level of accuracy, you can send your device to our facility for recalibration at a nominal cost. This service ensures your equipment continues to deliver reliable and precise results beyond the initial calibration period.

What are the minimum requirements to run TVIB software?

TVIB software will work on almost any PC which can run Windows operating system (32-bit or 64-bit versions). TVIB is compatible with  Windows 10, Windows 11

Recommended PC specifications:

  • Processor: Intel Core i7 with 4 Cores (3rd generation or higher)
  • Memory (RAM): 8 GB
  • Storage: Solid-state drive (SSD)
  • Graphics card: Compatible with DirectX 11
  • Display: 1280×720 (HD Ready)
  • Operating system: Windows 10 64-bit

Actual requirements may vary for different data acquisition configurations and your signal processing requirements. For more information, contace sales@tieraonline.in

Are all the sofrware updates free of charge?

Not always. Although the initialy procured licenses are perptual, further updates are free only for the first two years. We release a new major version as required. As TVIB software is very economic, we have kept an AMC amount for our software. All the performance updates, new features, and bug fixes are available for the upgrade by downloading and running the installer from the website. Contact sales@tieraonline.in for getting more detials regarding AMC.

Do you offer trial/demo license of TVIB?

Yes. We offer a fully unlocked  14 days evaluation version of TVIBE software. You can download the installer and obtain your evaluation license.

Try and Buy

Download 14 day trial
version of TVIB.

Experience the TVIB platform even without PhonoVibe hardware.

Download
0

Customer
use cases

0

variants

Reviews

What
people said.

Design Quality

“In conclusion, the 8-channel DAQ card by TIERA Pvt. Limited has exceeded my expectations in terms of performance, reliability, and customer support. Its simultaneous sampling capability and impressive sampling rate have greatly enhanced the efficiency of my data acquisition tasks. Having tested the product extensively over the past six months, I can confidently say that it is a valuable tool for researchers, engineers, and anyone seeking accurate and dependable data acquisition.”

Dr. Kapil Dev Tyagi

Associate-Professor, JIIT Noida

Quality, After-sales support

“Tiera Pvt Ltd delivered customized vibration analyzer ( NI-DAQ) along with additional accessories (accelerometer, force sensor, impact hammer, shaker with amplifier etc. ) to SVNIT, Surat. Their responses to the queries are very quick and good whether it may be for product enquiry or after sale service. They have good experienced technical team to clear all doubts”

Dr. Rohit Tamrakar

Professor, SVNIT, Surat

Design Quality

“I am quite impressed with the attention to detail with the kit and the quality of the build.”

Martin Broda

R&D Manager, LAB3
